CardClutch

Measurement subsystem: measure and cut with a single tool, comparing optical flow, time of flight, mouse sensor, trackball and IMU methods.

Guidance subsystem: guiding the user along a path with a laser, screen, buzzer and haptic motor. Cutting subsystem: cut any shape out of card.

Cutting subsystem continued: blade types, magnetic clutch, pivoting and piercing. Ergonomics testing with students and archivists, and design for manufacture: injection moulding analysis and FEA.

Colour, material and finish: Stanley and Scotch colour schemes, colour blind awareness, glass fibre filled nylon and textured grips.

User interface: cutting space, generate box, measure, vector upload and settings screens. System integration: design for assembly and circuit diagram.

System integration and circuit planning continued.

Technical drawings of the CardClutch components.

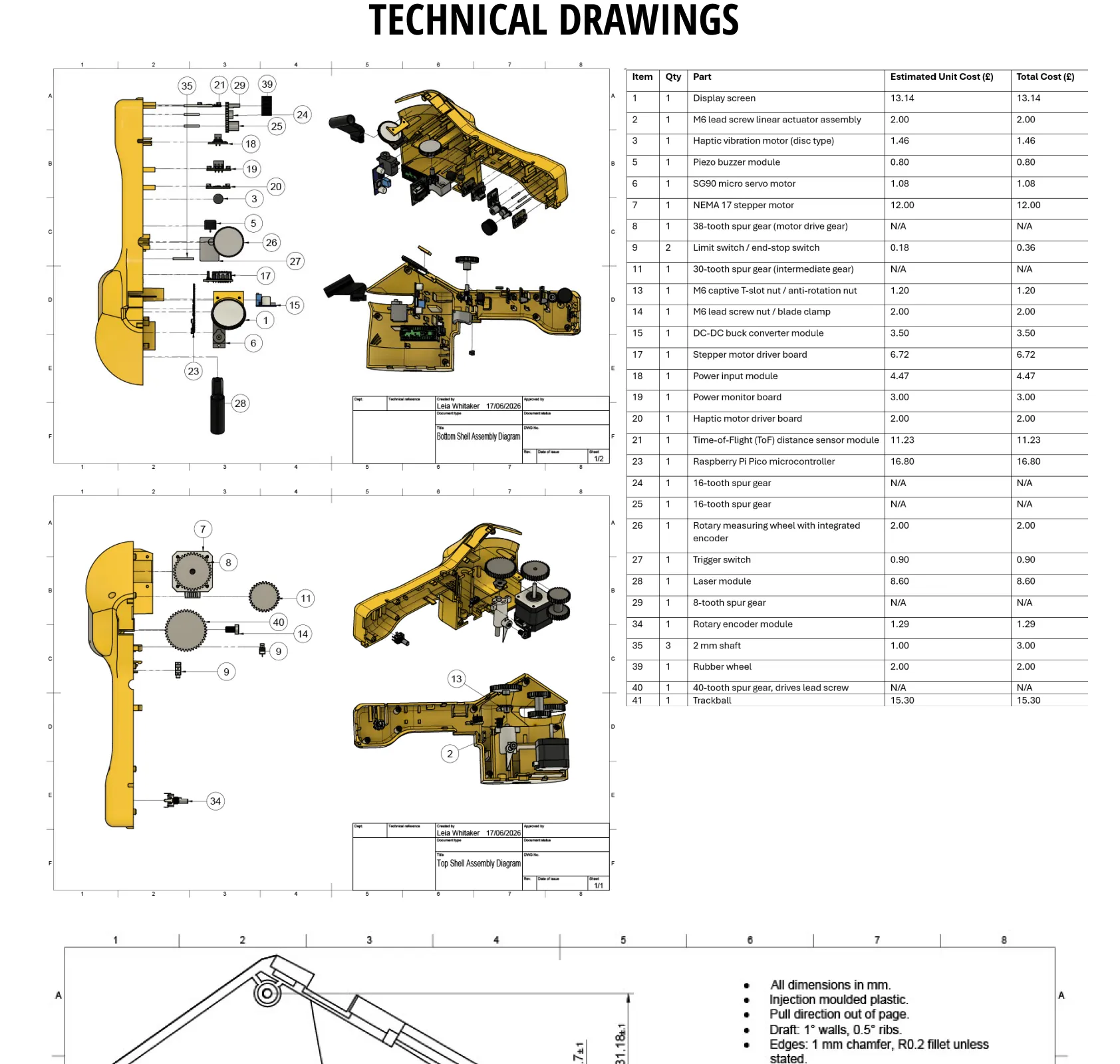

Technical drawings continued: shell sections and dimensions.

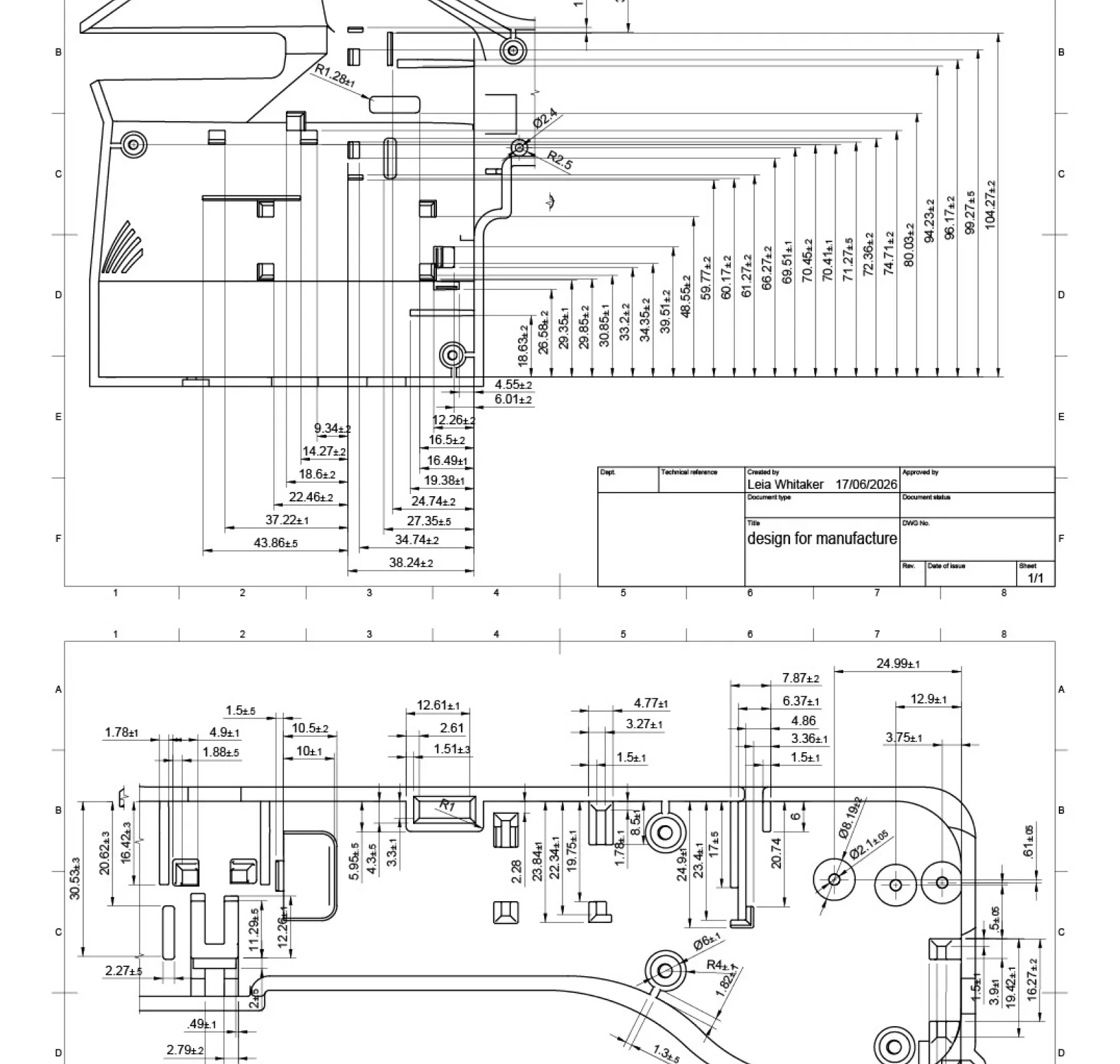

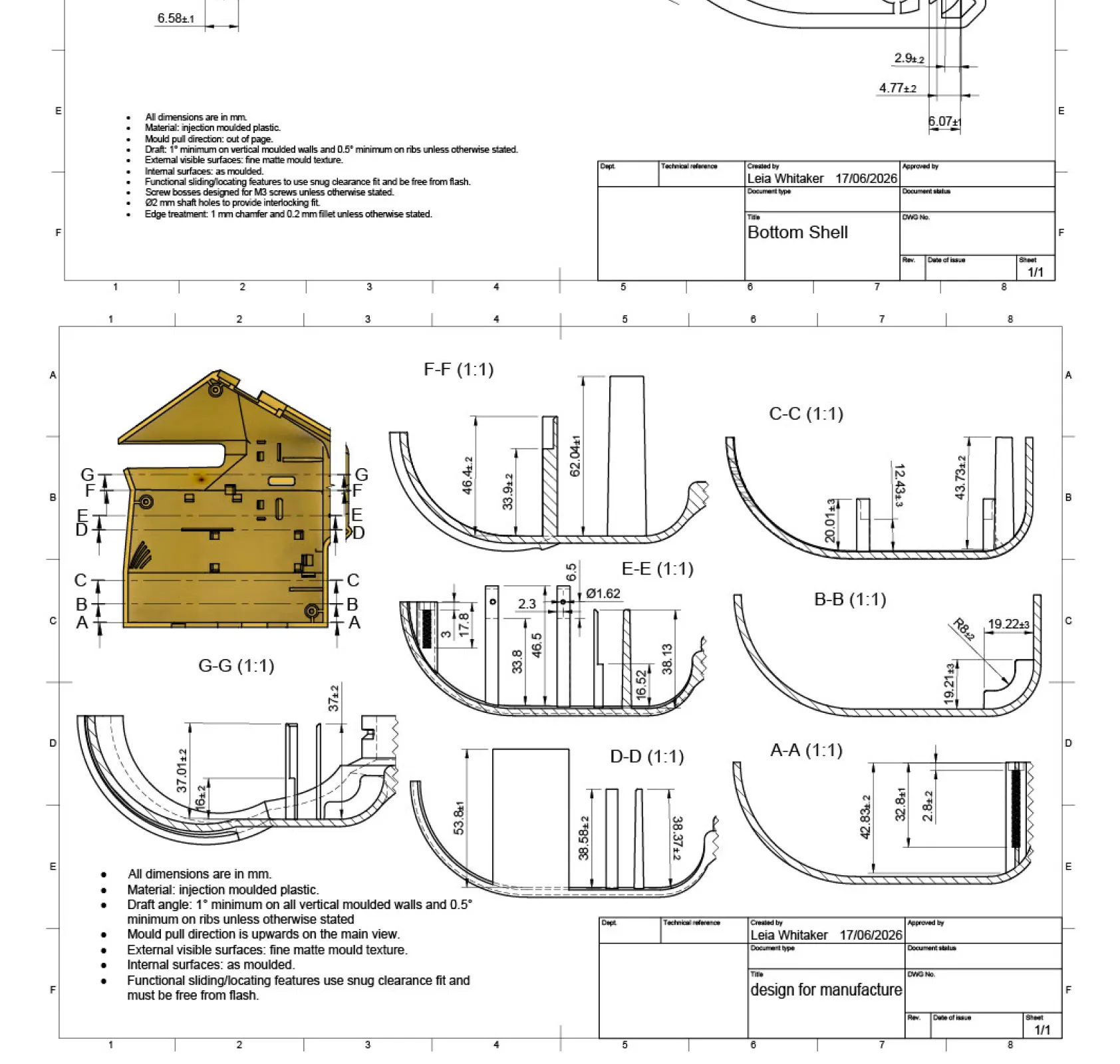

Technical drawings continued: bottom shell, design for manufacture.

Technical drawings continued: cross sections and handle extruded lengths.

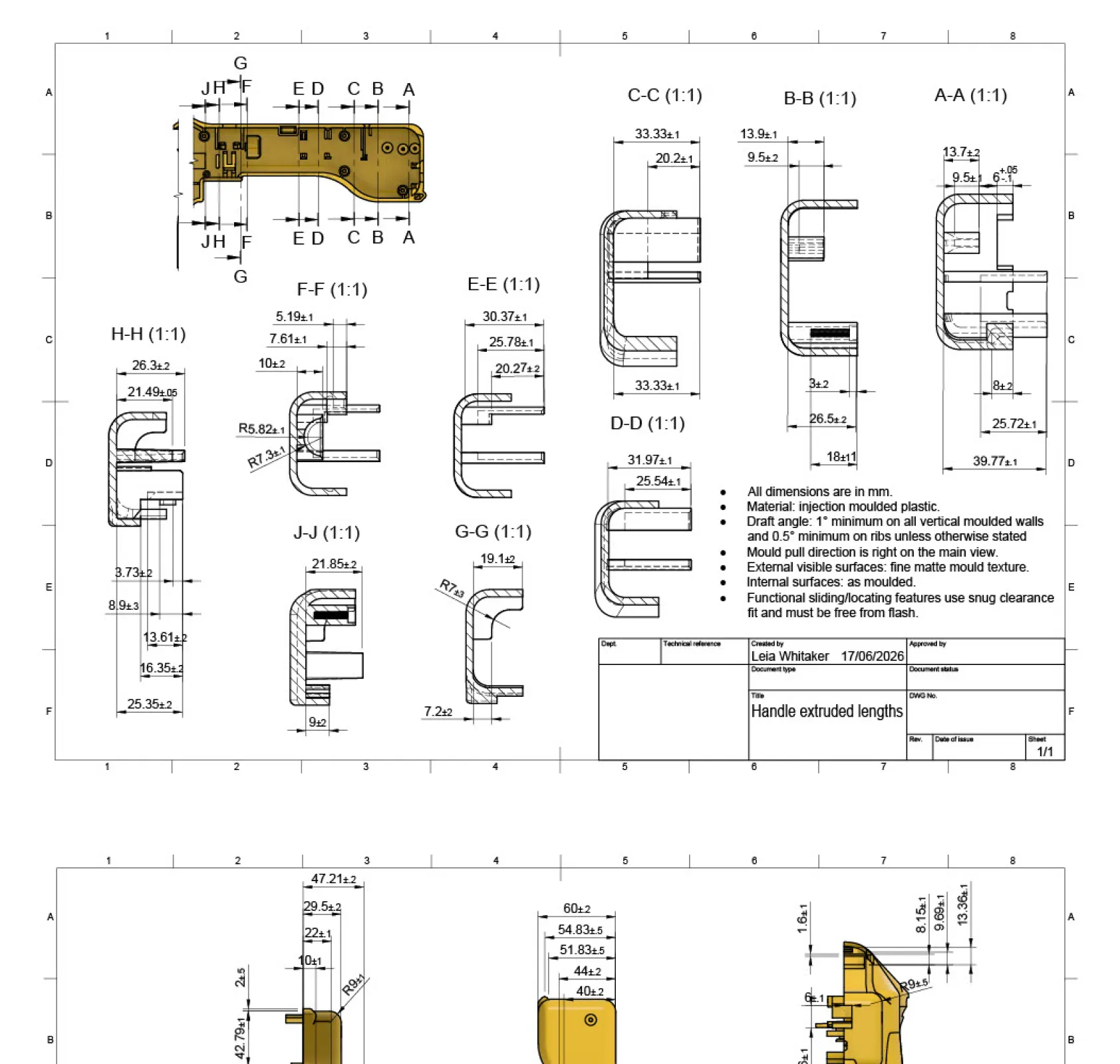

Technical drawings continued.

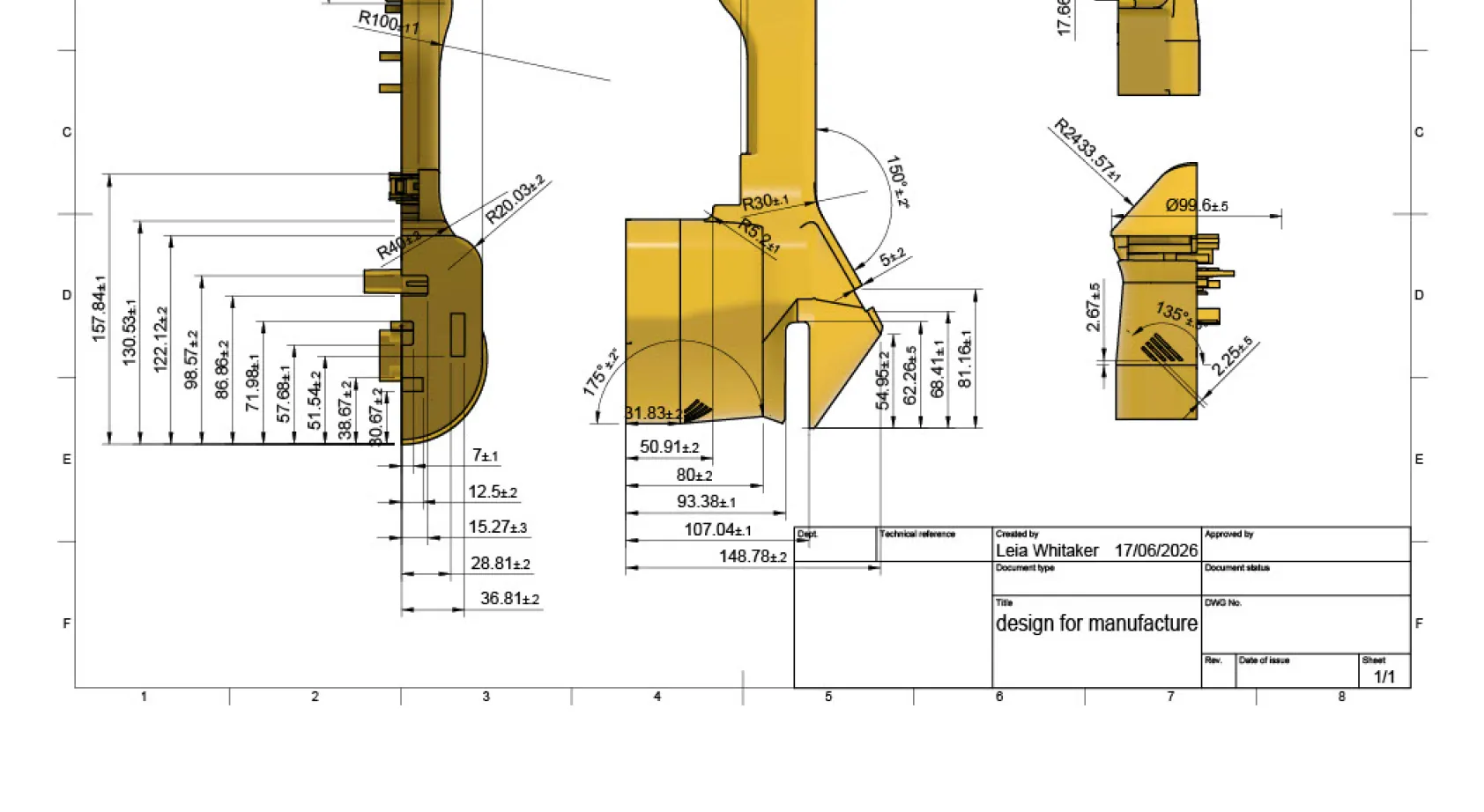

Technical drawings continued.
